Chipset GeForce® GTX 1060
Core Clock Boost: 1797MHz/ Base: 1582MHz in OC Mode
Boost: 1771MHz/ Base: 1556MHz in Gaming Mode
Memory Clock 8008 MHz
Process Technology 16 nm
Memory Size 6 GB
Memory Type GDDR5
Memory Bus 192 bit
Card Bus PCI-E 3.0 x 16
Output

Dual-link DVI-D *2

HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)

Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)

Digital max resolution 7680x4320
Multi-view 4
Card size H=39 L=223 W=121 mm
PCB Form ATX
DirectX 12
OpenGL 4.5
Power requirement 400W
Power Connectors 6 pin*1

VGA GIGABYTE GTX 1060 WINDFORCE OC 6G (GV-N1060WF2OC-6GD)

Mã SP: 0 đánh giá
Mô tả tóm tắt: VGA GIGABYTE GTX 1060 WINDFORCE OC 6G (GV-N1060WF2OC-6GD) Features - Powered by GeForce® GTX 1060 - Integrate
Giá SVC: Liên hệ
Mô tả sản phẩm

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

WINDFORCE 2X Cooling System- Fans

Alternate Spinning Fan Design

Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.

90mm Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

WINDFORCE 2X Cooling System- Heat Pipe

Composite heat-pipe

The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch

The pure copper heat pipe is shaped to maximize the direct contact area to the GPU.

WINDFORCE Cooling System- protection back plate

Performance

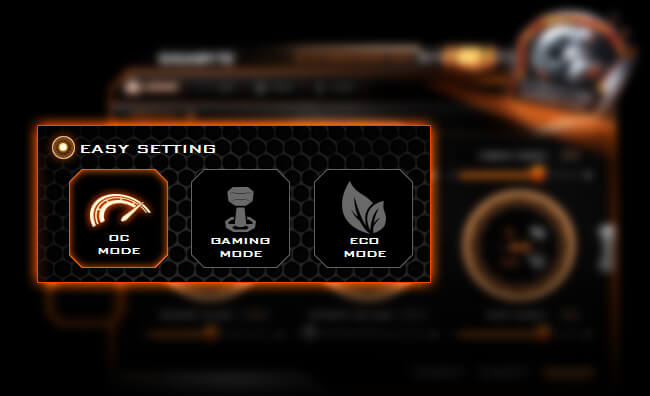

One-click Super overclocking

With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Durability

Ultra Durable Components

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for OverClocking with 4+1 power phases

Compared to founders edition, the 4+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*founders edition:3+1)

Intuitive Utility

Intuitive XTREME Engine Utility

Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface. Download
(*The interface and functionality of the software is subject to each model.)
